Introduction to .NET in SalesLogix Version 7
Description:  SalesLogix version 7 brings a whole new arena into the picture for SalesLogix developers. Version 7 allows for native support for .NET development. You can develop .NET assemblies and add them to the SalesLogix database. They can be bundles and even synchronize out to remotes. This new feature brings many new possibilities with what you can do with your SalesLogix development projects. This article will be the first in a series to provide an introduction to doing .NET development in SalesLogix version 7.

Category:  SalesLogix .NET Extensions Articles
Author:  Ryan Farley
Submitted:  5/12/2006

Stats:
Article has been read 32105 times

Rating: - 4.7 out of 5 by 17 users


fiogf49gjkf0d
Introduction to .NET in SalesLogix Version 7

SalesLogix version 7 brings a whole new arena into the picture for SalesLogix developers. Version 7 allows for native support for .NET development. You can develop .NET assemblies and add them to the SalesLogix database. They can be bundles and even synchronize out to remotes. This new feature brings many new possibilities with what you can do with your SalesLogix development projects. This article will be the first in a series to provide an introduction to doing .NET development in SalesLogix version 7.


A New Horizon

We've reached a whole new horizon as SalesLogix developers. The door has been opened to move beyond what we are used to being able to do in typical SalesLogix customizations. With .NET support in SalesLogix version 7 we can accomplish so much more than we ever could before with forms and scripts built in the Architect. However, it is important to understand some things about what this really means to us as developers. Here's a run down, in a nutshell, of what this new functionality entails:
  • Use Visual Studio 2005 to craft a .NET assembly (exe or dll)
  • The classes in your assembly are "SalesLogix aware" by simply inheriting from a base SalesLogix class or implementing a SalesLogix interface (provided in a new DLL installed with SalesLogix)
  • You add your .NET assemblies to the SalesLogix system as plugins via a new .NET Extensions Manager tool
  • Add dependencies and other supporting files with your assembly (which all will also automatically sync out to remotes and be installed on all desktops as well)
  • You can bundle your .NET assemblies in standard SalesLogix bundles
  • The .NET assemblies will synchronize out to remotes and self-install
  • The .NET assemblies are easily invoked from SalesLogix scripts
  • You can easily pass parameters from SalesLogix scripts to the exposed classes your .NET assembly
  • You can easily return values or objects from the exposed classes in your .NET assembly to the calling SalesLogix script
  • The .NET assemblies used in SalesLogix can do basically whatever you want, from complex processing to launching forms to whatever
  • The SalesLogix Application object automatically referenced by your classes for your use in the .NET code
  • Built in support for licensing your .NET assemblies (more on this in a future article)
  • All using .NET 2.0 (which will now also be installed by the SalesLogix installation - awesome!)
This new feature in SalesLogix is called "SalesLogix .NET Extensions". There is really nothing to do with just "Forms". The feature is assembly based - which can include forms, but also just classes that perform some processing without any form at all. The opportunities are limitless for what is possible within the realm of creating and delivering .NET created customizations.


Your SalesLogix .NET Extensions Primer

Let's walk through the steps to perform a simple customization for SalesLogix using .NET. For this example we will keep things simple and just create a .NET class that displays a MessageBox and we will invoke this from a SalesLogix script (more complex examples to follow in future articles). Fire up Visual Studio 2005 and we'll get started.

For this example, let's create a "Class Library" project and we'll leave the default name of "ClassLibrary1". The first thing we need to do is add a reference to the SalesLogix library that contains the base class & interface that are available to inherit from to make the class "SalesLogix aware".
  1. To go the "Project" menu and select "Add Reference"
  2. In the Add Reference dialog, click the "Browse" tab
  3. Browse to the SalesLogix directory and add the DLL named "Sage.SalesLogix.NetExtensions.Framework.dll"
Now that we have a reference to the SalesLogix framework assembly, we either need to inherit from the "BaseRunnable" class or implement the "IRunnable" interface.


BaseRunnable and IRunnable

As I mentioned before, in order for your class to be "SalesLogix aware" you need to either inherit from the "BaseRunnable" class or implement the "IRunnable" interface. So what is the difference? Before we discuss that, let's go over what happens when your .NET assembly is loaded from SalesLogix. When SalesLogix loads your assembly it is not "executed", but instead loaded and the class contained in it (well, the class you specify when you load it) is instantiated inside a new AppDomain. The BaseRunnable class and IRunnable interface are the well defined entry points into your assembly. SalesLogix will use these entry points when loading the assembly. Once the class is instanciated by SalesLogix a reference to the SalesLogix Application object will be passed to your class along with a LicenseKeyManager object (which is used for licensing your assembly. This will be discussed in a future article).

The choice of whether to implement the IRunnable interface or inherit from the BaseRunnable class comes down to what other requirements you have for your class. A .NET class can only inherit from a single base class. So if your class needs to inherit from some other base class, such as System.Windows.Forms.Form for example, then you have no choice but to implement the IRunnable interface.

If you are going to inherit from the BaseRunnable class then you add it as the base class for the class in your project, however the BaseRunnable class has an abstract method (or MustOverride in VB.NET terminology) you must override. This abstract method, named Run, is what SalesLogix will call to start your code. This is your entry point, like "Sub Main" is for a VBScript. So far, your code will look like this if you are inheriting from the BaseRunnable class:

For C#:
namespace ClassLibrary1
{
    public class Class1 : Sage.SalesLogix.NetExtensions.BaseRunnable
    {
        public override object Run(object[] Args)
        {

        }
    }
}

For VB.NET:
Public Class Class1
    Inherits Sage.SalesLogix.NetExtensions.BaseRunnable

    Public Overrides Function Run(ByVal Args() As Object) As Object

    End Function
End Class

You will notice that the Run method returns an object. This is so you can return a value or object back to the calling SalesLogix scrip. If you don't need to return anything back then simply return null (or Nothing in VB.NET). You will also notice that there is an object array passed into the method. This is so the calling script can pass one or many parameters into your .NET class.

Now, let's say you decide to implement the IRunnable interface instead of inheriting from the BaseRunnable class. The interface defines two methods that you will need to implement. The "Run" method, which is the same as the abstract method we had to override before, and also an Initialize method. The Initialize method is where SalesLogix will pass a reference to the Application object to our class and we can store that in a private member. When we inherited from the BaseRunnable class this was done internally in the BaseRunnable class. The BaseRunnable class was a class that simply inherited from the IRunnable class and exposed the Application object passed into the Initialize method as a property. We have to do this ourselves when we implement the IRunnable interface. The code to implement this interface would look like this:

For C#:
using Sage.SalesLogix.NetExtensions;

namespace ClassLibrary1
{
    public class Class1 : Sage.SalesLogix.NetExtensions.IRunnable
    {
        private SalesLogix.ISlxApplication _SlxApplication;

        public void Initialize(SalesLogix.ISlxApplication SlxApplication, Licensing.ILicenseKeyManager LicenseKeyManager)
        {
            _SlxApplication = SlxApplication;
        }

        public object Run(object[] Args)
        {

        }
    }
}

For VB.NET:
Imports Sage.SalesLogix.NetExtensions

Public Class Class1
    Implements Sage.SalesLogix.NetExtensions.IRunnable

    Private _SlxApplication As SalesLogix.ISlxApplication

    Public Sub Initialize(ByVal SlxApplication As SalesLogix.ISlxApplication, _
        ByVal LicenseKeyManager As Licensing.ILicenseKeyManager) _
        Implements IRunnable.Initialize

    End Sub

    Public Function Run(ByVal Args() As Object) As Object _
        Implements IRunnable.Run

    End Function
End Class

Let's move on to create the rest of the project and do something useful.


The Hello World Sample Project

For our sample project we will inherit from the BaseRunnable class and display a MessageBox from our .NET class. Our code is simple and doesn't deviate too much from what we've looked at already, so let's just jump to the code:

For C#:
using System;
using System.Windows.Forms;
using Sage.SalesLogix.NetExtensions;

namespace ClassLibrary1
{
    public class Class1 : Sage.SalesLogix.NetExtensions.BaseRunnable
    {
        public override object Run(object[] Args)
        {
            string msg = "Hello .NET-SalesLogix World!\r\n\r\n" +
                         "Argument passed: " + (Args.Length == 0 ? "None" : Args[0].ToString()) + "\r\n" +
                         "Current userid: " + SlxApplication.BasicFunctions.CurrentUserID() + "\r\n" +
                         "Connection String: " + SlxApplication.ConnectionString;

            MessageBox.Show(msg, ".NET MessageBox");
            return null;
        }
    }
}

For VB.NET:
Imports System.Windows.Forms
Imports Sage.SalesLogix.NetExtensions

Public Class Class1
    Inherits Sage.SalesLogix.NetExtensions.BaseRunnable

    Public Overrides Function Run(ByVal Args() As Object) As Object
        Dim msg As String = "Hello .NET-SalesLogix World!" & vbCrLf & vbCrLf & _
                            "Argument passed: " & IIf(Args.Length = 0, "None", Args(0)) & vbCrLf & _
                            "Current userid: " & SlxApplication.BasicFunctions.CurrentUserID() & vbCrLf & _
                            "Connection String: " & SlxApplication.ConnectionString

        MessageBox.Show(msg, ".NET MessageBox")
        Return Nothing
    End Function
End Class

Our .NET code is now complete. Let's take a look at how to get that into SalesLogix.


Adding the Assembly to SalesLogix

After compiling the code we created in the last section, we now have to add the assembly to SalesLogix so we can use it and it will be deployed to all SalesLogix clients. We can do this by launching the .NET Extensions Manager from the Architect (this can be found under the "Manage" menu. The .NET Extensions Manager can also be launched without going into Architect first by launching "SLXNetExtensions.exe" which is found in the SalesLogix directory (you will be prompted to log into a database).

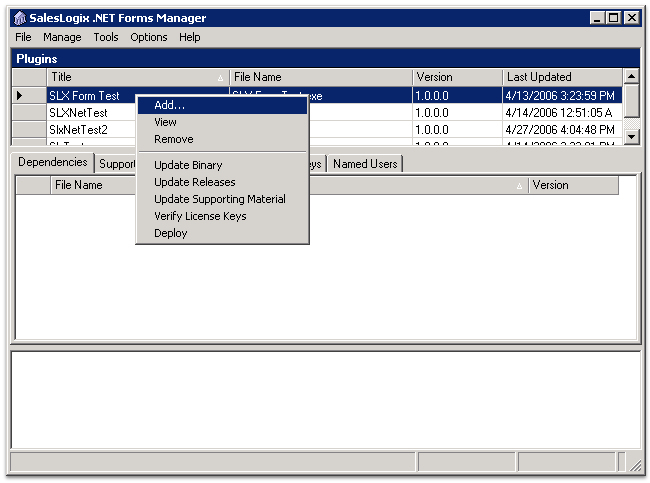

The .NET Extensions Manager is split into three sections. The top displays a list of the .NET plugins (assemblies) in the database, the middle section contains tabe of related information about the selected plugin, and the bottom section is a log of actions performed and their outcomes. To add our assembly to the .NET Forms Manager, we simply right-click in the top section and then select "Add...". A browse dialog will appear and we browse to select our compiled assembly. If the assembly had other dependencies they would automatically be added as well. We can also add other related files if desired.

When we add our assembly, it is given a name or title based on the file name. This is how we will refer to the assembly from within SalesLogix. We can also select who to release the assembly plugin to as well from this same window by moving to the "Releases" tab and right-clicking to bring up the releases dialog. Should we wish to bundle the assembly we can also do it from here by selecting the "Deploy" menu.

The assembly has now been added to SalesLogix and we are ready to use it.


Using the Assembly from SalesLogix

To use the assembly, let's create a new SalesLogix form and add a button to it. In the script behind the form we will add the following code:

Dim ext ' this variable will hold the handle for the loaded .NET Extension

    ' instanciate the .NET Extension
    ext = Application.Managed.Create("SLX NET Extensions Test", "ClassLibrary1.Class1")

    ' run it (and pass any arguments)
    Application.Managed.Run ext, "Hello from Architect"

    ' destroy the loaded .NET Extension
    Application.Managed.Destroy ext

Let's analyze what that means. The Application now has a Managed class. This class exposes a "Create" method to load our .NET Extension, a method named "Run", which is used to "run" or invoke the class, and a "Destroy" method, which is used to destroy and unload the .NET Extension. We pass two parameters to the Create method. The plugin's Title and the fully qualified class name from our assembly (namespace and class name) and it returns a handle for us. When we call Run, we pass the handle and also a list of any arguments we want to pass to the code (If we don't want to pass anything we use Empty). Remember that we could also return a value from the .NET class which we would capture as the returned result from the call Managed.Run. When we are done with it we can destroy it by calling the "Destroy" method and pass it the handle. That is it. The end result is as follows:



We didn't do all that much here, but I can't tell you how excited I was to run that for my first time! Just awesome!


Wrapping it up

There are so many possibilities available with the support for hosting .NET inside of SalesLogix. A new day has come for us as SalesLogix developers. It is a great day - and this is only the beginning ;-)

Until next time, happy coding.
-Ryan


Updates

  • 9/25/2006 - Updated article for SalesLogix 7.0 Gold release syntax
